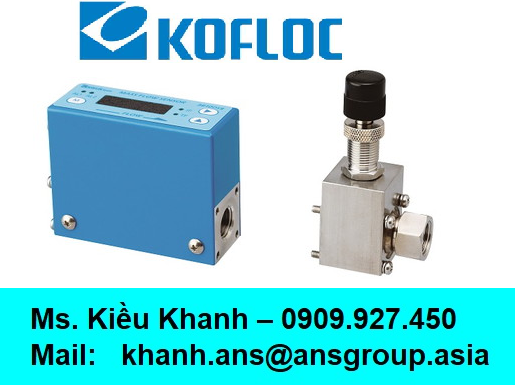

Mass Flow Meter with Display MODEL 3810DSII - Kofloc Vietnam
Xuất sứ: made in Japan
Nhà cung cấp: Anh Nghi Sơn (ANS)
Hãng sản xuất: Kofloc Việt Nam
0373238670| Sensor | Thermal sensor | |
| Flow range (N2 equivalent) | 10 SCCM–20 SLM | 21–100 SLM |
| Accuracy | Within ±2% F.S. at 25℃ | Within ±3% F.S. at 25℃ |
| Operating pressure | 0.0–0.5 MPa (G) | |
| Proof pressure | 1.0 MPa (G) | |
| Allowable ambient temperature | 0–50℃ | |
| Temperature coefficient | ±0.2% F.S./℃ (15–35℃) | |
| Materials of parts in contact with gases |
Body: SUS303, PTFE | |
| Sealing: FKM | ||
| Option: Neoprene | ||
| Connection end | Standard: Rc 1/4 (Ask us for other sizes.) | |
| Power supply | 24 VDC ±5%, 100 mA (option: AC adapter) | |
| Flow output signal | 1–5 V, 4–20 mA (Select when ordering.) | |
| Event output | 2 × NPN open collector output Maximum rating: 30 VDC, 50 ｍA |
|
